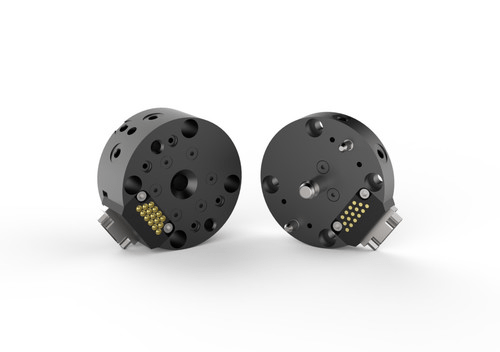

QC-30M-E12 Tool Changer

Robot Side:
QC-30 Specification:
Max. Payload: 13.6 Kg
Weight: 0.23 Kg Bore Ø: 25.4 mm
Displacement: 3.9 cm3
Loading Capacity Max. Tensile T: 311 N
Max. Compressive C: 445 N
Max. Moment (Mx/My/Mz): 22.6 Nm
