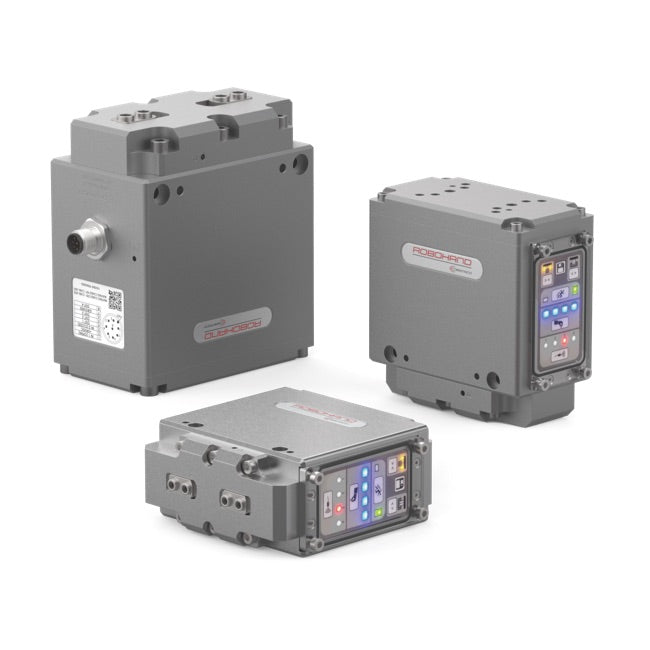

eRDH-2M-L-P-0 2 Jaw Electric Parallel Gripper

The DESTACO eRDH-2M-L-P-0 is a configurable 2-jaw electric parallel gripper with a 12 mm total stroke and 420 N minimum rated grip force. Integrated 24 VDC controls accept standard PLC or robot discrete I/O commands, while the onboard keypad supports adjustable grip force and speed. Its self-locking mechanism maintains grip force during power loss, and the sealed design is IP67 tested for industrial automation applications.

• Output type: PNP
• Connector: M12, 8-pin, A-coded
• Weight: 1.1 kg
