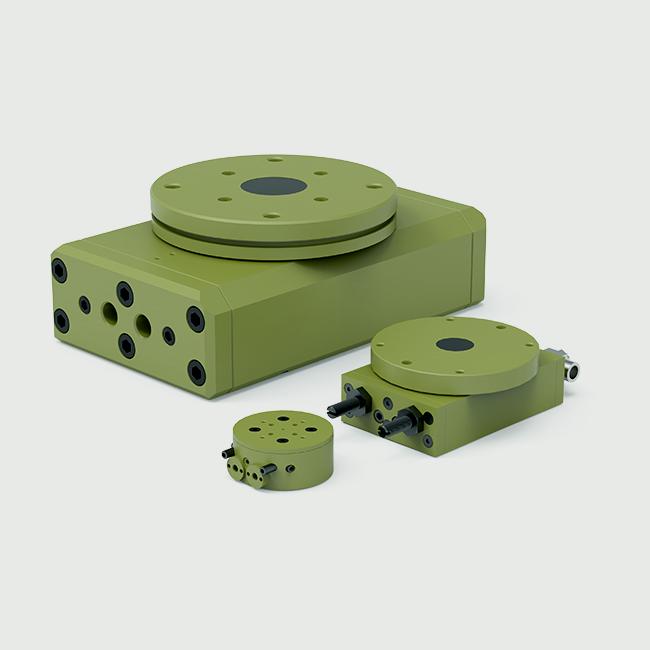

RR-28 Light-Duty Rotary Actuator
Compact, low-profile rotary actuator with preloaded bearings and adjustable hard-stops. Compared to RR-18, RR-28 increases payload and torque while maintaining the same light-duty footprint. Optional rotary manifold and CR configuration available.
Features per datasheet p.3.
RR-28 Specifications
| Specification |
Value |
| Maximum Payload |
1.36 kg [3.0 lb] |
| Maximum Payload Inertia |
0.001255 N·m·s² [0.0111 in-lb·s²] |
| Maximum Rotation |
180° |
| Maximum Torque (mid-stroke @ 100 psi / 7 bar) |
2.5 N·m [22 lb-in] |
| Pitch Diameter of Pinion |
12.7 mm [0.50 in] |
| Weight |
0.65 kg [1.44 lb] |
| Pressure Range |
2–7 bar [30–100 psi] |
| Ingress Protection |
IP66 |
| Displacement (180°) |
11.4 cm³ [0.69 in³] |
| Temperature Range (Buna-N) |
−35~80 °C [−30~180 °F] |
| Temperature Range (Viton®) |
−30~150 °C [−20~300 °F] |
| Actuation Time (180° @ 100 psi) |
0.35 s |
| Actuation Time (90° @ 100 psi) |
0.30 s |
| End-stop Repeatability |
±0.02° |
| End-stop Adjustability |
23° |
| Over-travel (each end) |
8° |
| Valve Required |
4-way, 2-position |
Specs from datasheet p.4 (RR-28):contentReference[oaicite:1]{index=1}
