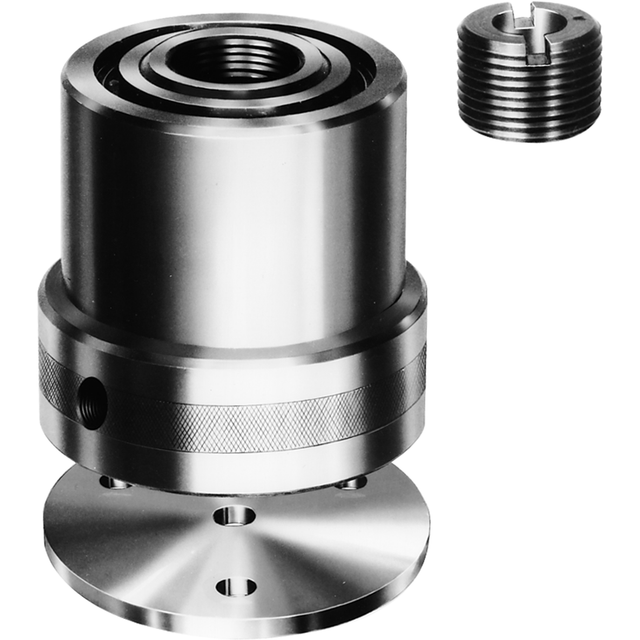

020-011-011DE Thru-Hole Hydraulic Ram. Compact single-acting cylinder with hardened piston/rod and larger piston area for higher clamping force. Ships with thru-hole insert 705384; often used to convert manual strap clamps to hydraulic actuation with a longer bolt. (Max input pressure 3,500 PSIG.)
| Specification |
Value |
| RAM I.D. |
0.38 in |
| Port |
SAE #2 |
| Stroke |
0.38 in |
| Force @ 3,000 PSIG |
4,380 lb |
| Oil Displacement |
0.547 cu in |
| Dimensions (A × B × C) |
2.13 × 1.88 × 2.25 in |
| Thru-Hole Insert (supplied) |
705384 |
