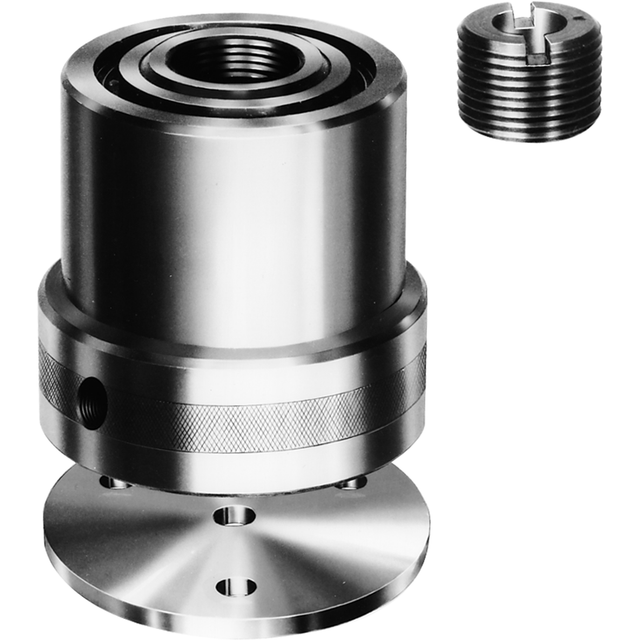

020-013-031DE Thru-Hole Hydraulic Ram. Largest model in the set for maximum clamping force; ships with thru-hole insert 705634. Excellent where you need to push/pull through the hollow piston and translate power into tight spaces. (Max input pressure 3,500 PSIG.)
| Specification |
Value |
| RAM I.D. |
0.63 in |
| Port |
SAE #4 |
| Stroke |
0.63 in |
| Force @ 3,000 PSIG |
12,066 lb |
| Oil Displacement |
2.51 cu in |
| Dimensions (A × B × C) |
3.25 × 3.00 × 3.63 in |
| Thru-Hole Insert (supplied) |
705634 |
