Robohand

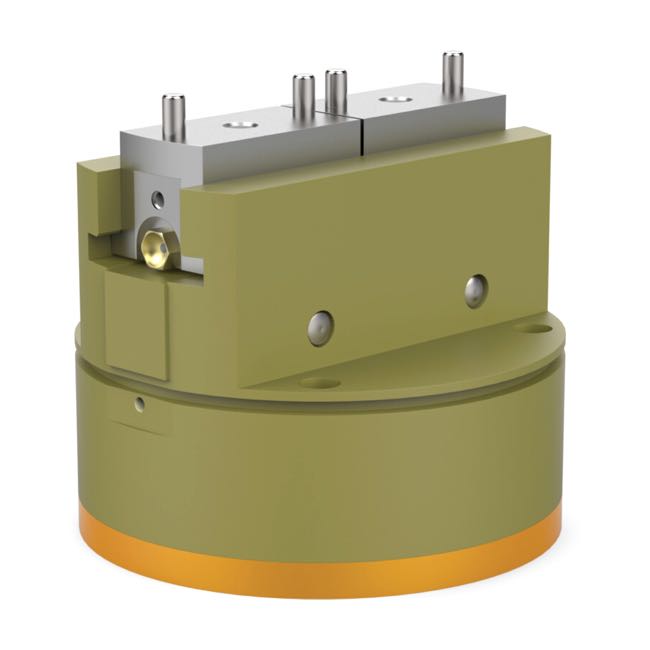

11002P-P-RI 2 Jaw Precision Parallel Gripper

Name: 11002P-P-RI 2 Jaw Precision Parallel Gripper
Brand: Robohand
SKU: 11002P-P-RI
Price: 1447.00 USD
Availability: InStock

SKU:11002P-P-RI

$1,447.00 USD

Sale Sold out

Shipping calculated at checkout.

Specification	Value
Model	11002P-P (Standard Stroke)
Grip Force (F6+R) at 6 bar [87 psi]	3043 N [684 lb]
Grip Force (F0+R) at 0 bar	965 N [217 lb]
Total Stroke	20 mm [0.79 in]
Pressure Range (without spring)	2–7 bar [30–100 psi]
Pressure Range (with spring)	4–7 bar [60–100 psi]
Ingress Protection	IP54
Displacement	87 cm³ [5.31 in³]
Temperature Range (Buna-N)	−35° to 80 °C [−30° to 180 °F]
Temperature Range (Viton®)	−30° to 150 °C [−20° to 300 °F]
Actuation (open/close)	0.10 s
Repeatability	±0.02 mm [±0.001 in]

Specification	Value
Model	11002P-P-C (Extended Stroke)
Grip Force (F6+R) at 6 bar [87 psi]	2030 N [456 lb]
Grip Force (F0+R) at 0 bar	644 N [145 lb]
Total Stroke	30 mm [1.18 in]
Pressure Range (without spring)	2–7 bar [30–100 psi]
Pressure Range (with spring)	4–7 bar [60–100 psi]
Ingress Protection	IP54
Displacement	87 cm³ [5.31 in³]
Temperature Range (Buna-N)	−35° to 80 °C [−30° to 180 °F]
Temperature Range (Viton®)	−30° to 150 °C [−20° to 300 °F]
Actuation (open/close)	0.10 s
Repeatability	±0.02 mm [±0.001 in]
