Robohand

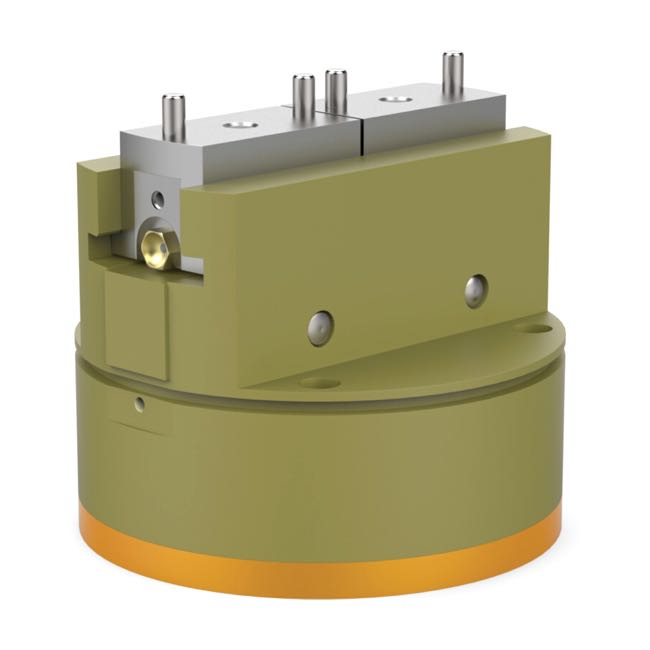

14002P-P-C 2 Jaw Precision Parallel Gripper

Name: 14002P-P-C 2 Jaw Precision Parallel Gripper
Brand: Robohand
SKU: 14002P-P-C
Price: 2410.00 USD
Availability: InStock

SKU:14002P-P-C

$2,410.00 USD

Sale Sold out

Shipping calculated at checkout.

Specification	Value
Model	14002P-P (Standard Stroke)
Grip Force (F6+R) at 6 bar [87 psi]	6232 N [1400 lb]
Grip Force (F0+R) at 0 bar	2305 N [518 lb]
Total Stroke	26 mm [1.02 in]
Weight	4.2 kg [9.26 lb]
Pressure Range (without spring)	2–7 bar [30–100 psi]
Pressure Range (with spring)	4–7 bar [60–100 psi]
Ingress Protection	IP54
Displacement	220 cm³ [13.43 in³]
Temperature Range (Buna-N)	−35° to 80 °C [−30° to 180 °F]
Temperature Range (Viton®)	−30° to 150 °C [−20° to 300 °F]
Actuation (open/close)	0.16 s
Repeatability	±0.02 mm [±0.001 in]

Specification	Value
Model	14002P-P-C (Extended Stroke)
Grip Force (F6+R) at 6 bar [87 psi]	4031 N [906 lb]
Grip Force (F0+R) at 0 bar	1490 N [335 lb]
Total Stroke	40 mm [1.57 in]
Weight	8.74 kg [19.26 lb]
Pressure Range (without spring)	2–7 bar [30–100 psi]
Pressure Range (with spring)	4–7 bar [60–100 psi]
Ingress Protection	IP54
Displacement	494 cm³ [30.15 in³]
Temperature Range (Buna-N)	−35° to 80 °C [−30° to 180 °F]
Temperature Range (Viton®)	−30° to 150 °C [−20° to 300 °F]
Actuation (open/close)	0.29 s
Repeatability	±0.02 mm [±0.001 in]
