DESTACO

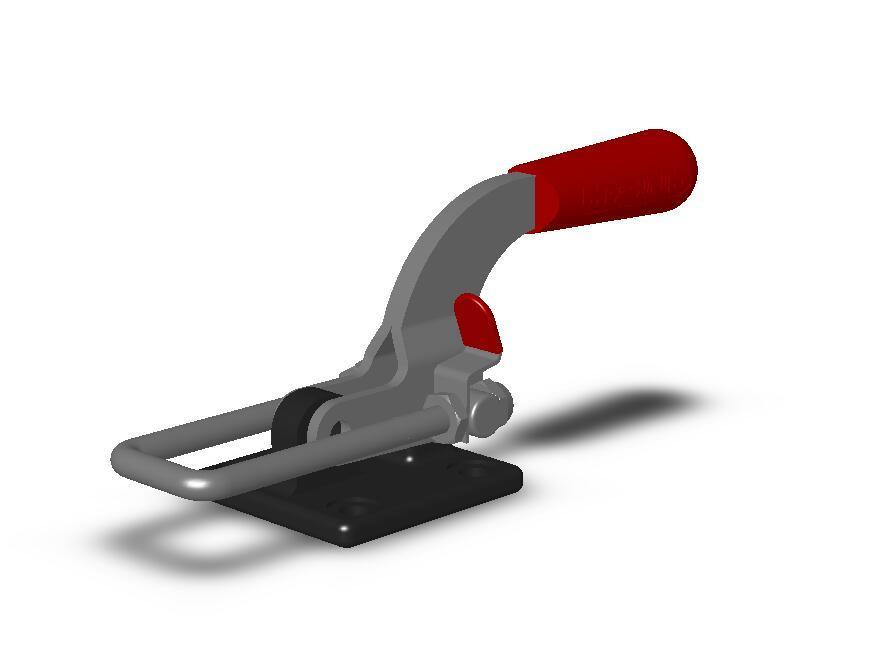

375 Pull Action Latch Clamp

Name: 375 Pull Action Latch Clamp
Brand: DESTACO
SKU: 375
Price: 88.22 USD
Availability: InStock

SKU:375

$88.22 USD

Sale Sold out

Shipping calculated at checkout.

Model	Max. Holding Capacity	Weight	EF:AF	Drawing Movement	Latch Plate	Replacement Hook Assembly	Hook Adj. Range
375	4000 lbf [17 800 N]	2.94 lb [1.33 kg]	44:1	3.50 in [88.9 mm]	385102 (Optional)	375204	0.81 in [20.5 mm]
375-R	4000 lbf [17 800 N]	3.00 lb [1.36 kg]	44:1	3.50 in [88.9 mm]	385102 (Optional)	375204	0.81 in [20.5 mm]
375-B	4000 lbf [17 800 N]	2.56 lb [1.16 kg]	44:1	3.50 in [88.9 mm]	375509 (Supplied)	375204	0.81 in [20.5 mm]
375-BR	4000 lbf [17 800 N]	2.62 lb [1.19 kg]	44:1	3.50 in [88.9 mm]	—	375204	0.81 in [20.5 mm]
EF = Exerting Force, AF = Applied Force. 375-BR available upon request.
