DESTACO

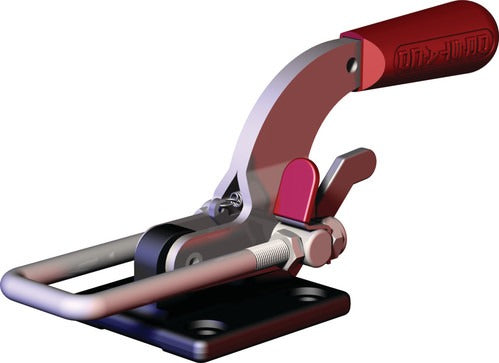

375-R-M-25 375-R Pull Action Latch Clamp With 25mm Longer Hook

375-R-M-25 375-R Pull Action Latch Clamp With 25mm Longer Hook

375-R-M-25

$155.18 USD
$155.18 USD
Sale Sold out
Shipping calculated at checkout.
View full details

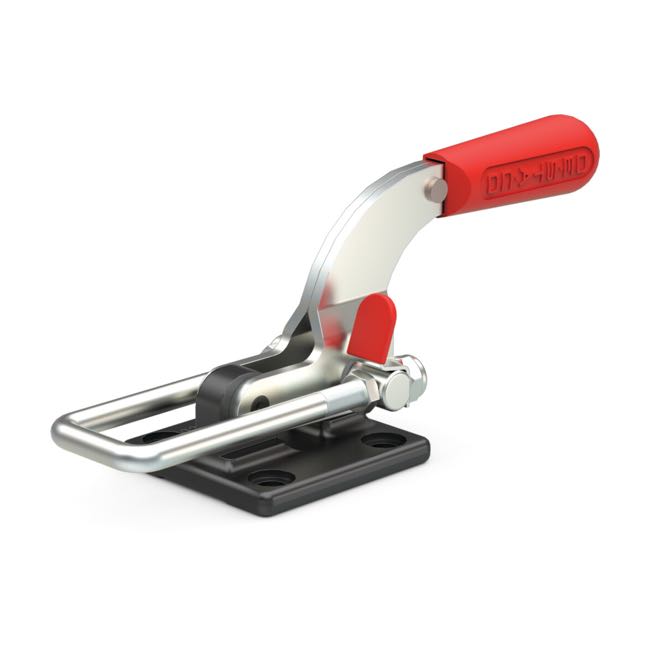

375 Series — Technical Information | Holding Capacities
Model Max.
Holding Capacity		 Weight EF:AF Drawing
Movement		 Latch
Plate		 Replacement
Hook Assembly		 Hook Adj.
Range
375 4000 lbf [17 800 N] 2.94 lb [1.33 kg] 44:1 3.50 in [88.9 mm] 385102 (Optional) 375204 0.81 in [20.5 mm]
375-R 4000 lbf [17 800 N] 3.00 lb [1.36 kg] 44:1 3.50 in [88.9 mm] 385102 (Optional) 375204 0.81 in [20.5 mm]
375-B 4000 lbf [17 800 N] 2.56 lb [1.16 kg] 44:1 3.50 in [88.9 mm] 375509 (Supplied) 375204 0.81 in [20.5 mm]
375-BR 4000 lbf [17 800 N] 2.62 lb [1.19 kg] 44:1 3.50 in [88.9 mm] — 375204 0.81 in [20.5 mm]
EF = Exerting Force, AF = Applied Force. 375-BR available upon request.
Download Datasheet (PDF)
