Robohand

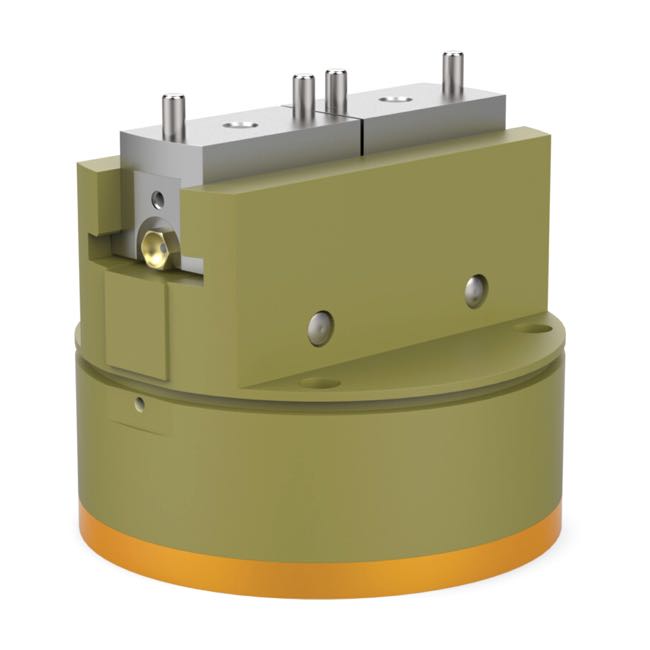

6002P-P-RE-C 2 Jaw Precision Parallel Gripper

Name: 6002P-P-RE-C 2 Jaw Precision Parallel Gripper
Brand: Robohand
SKU: 6002P-P-RE-C
Price: 1264.00 USD
Availability: InStock

SKU:6002P-P-RE-C

$1,264.00 USD

Sale Sold out

Shipping calculated at checkout.

Specification	Value
Model	6002P (Pneumatic)
Grip Force (F6+R) at 6 bar [87 psi], springs mid-way, L=0	694 N [156 lb]
Grip Force (F0+R) at 0 bar, springs mid-way, L=0	176 N [40 lb]
Total Stroke	10 mm [0.39 in]
Weight	0.51 kg [1.12 lb]
Pressure Range (without spring)	2–7 bar [30–100 psi]
Pressure Range (with spring)	4–7 bar [60–100 psi]
Ingress Protection	IP54
Displacement	12 cm³ [0.73 in³]
Temperature Range (Buna-N seals)	−35° to 80 °C [−30° to 180 °F]
Temperature Range (Viton® seals)	−30° to 150 °C [−20° to 300 °F]
Actuation (open/close)	0.07 s
Repeatability	±0.02 mm [±0.001 in]
