Robohand

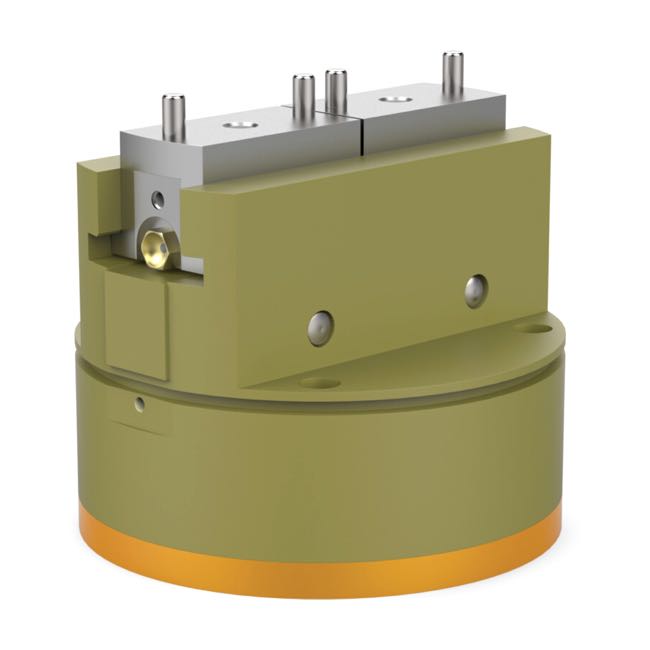

8002P-P-RE-C 2 Jaw Precision Parallel Gripper

Name: 8002P-P-RE-C 2 Jaw Precision Parallel Gripper
Brand: Robohand
SKU: 8002P-P-RE-C
Price: 1372.00 USD
Availability: InStock

SKU:8002P-P-RE-C

$1,372.00 USD

Sale Sold out

Shipping calculated at checkout.

Specification	Value
Model	8002P-P (Standard Stroke)
Grip Force (F6+R) at 6 bar [87 psi]	1946 N [437 lb]
Grip Force (F0+R) at 0 bar	635 N [143 lb]
Total Stroke	13 mm [0.51 in]
Weight	2.04 kg [4.50 lb]
Pressure Range (without spring)	2–7 bar [30–100 psi]
Pressure Range (with spring)	4–7 bar [60–100 psi]
Ingress Protection	IP54
Displacement	35 cm³ [2.14 in³]
Temperature Range (Buna-N seals)	−35° to 80 °C [−30° to 180 °F]
Temperature Range (Viton® seals)	−30° to 150 °C [−20° to 300 °F]
Actuation (open/close)	0.10 s
Repeatability	±0.02 mm [±0.001 in]

Specification	Value
Model	8002P-P-C (Extended Stroke)
Grip Force (F6+R) at 6 bar [87 psi]	1256 N [282 lb]
Grip Force (F0+R) at 0 bar	410 N [92 lb]
Total Stroke	20 mm [0.79 in]
Weight	2.04 kg [4.50 lb]
Pressure Range (without spring)	2–7 bar [30–100 psi]
Pressure Range (with spring)	4–7 bar [60–100 psi]
Ingress Protection	IP54
Displacement	35 cm³ [2.14 in³]
Temperature Range (Buna-N seals)	−35° to 80 °C [−30° to 180 °F]
Temperature Range (Viton® seals)	−30° to 150 °C [−20° to 300 °F]
Actuation (open/close)	0.10 s
Repeatability	±0.02 mm [±0.001 in]
