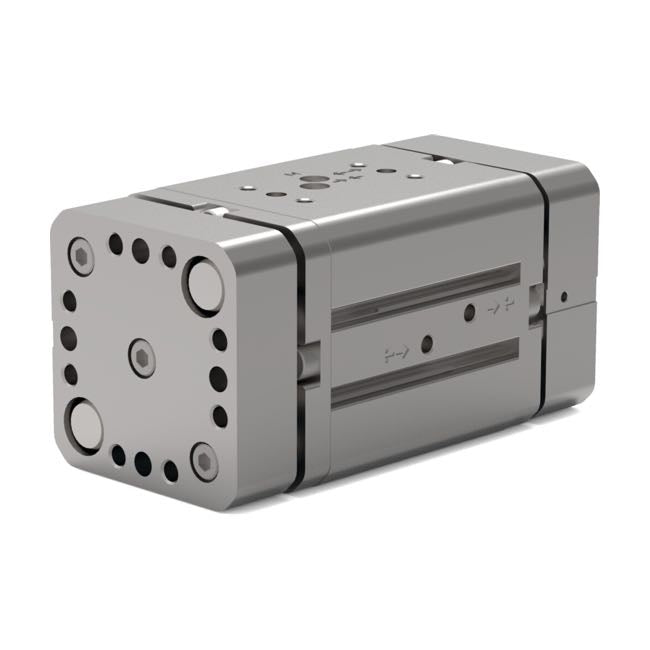

DPW-500M-1 2 Jaw Wide Body Parallel Gripper

DPW-500M-1 Two Jaw Wide Body Parallel Gripper -DESTACO Robohand
2 Jaw Wide Body Parallel Gripper

• Up to 4 position sensing available.
• Urethane Shaft Wiper Option for harsh environments
• Stainless Steel Support Shafts

Imperial or Metric Product	Metric
Grip Force (N)	800
Grip Force (lbsf)	180
Stroke (mm)	38.1
Stroke (in)	1.500
Cylinder Bore (mm)	31.8
Cylinder Bore (in)	1.25
Pressure Range (bar)	1.5-7
Pressure Range (psi)	20-100
Temp Range Standard	-35° to 80°C (-30° to 180°F)
Temp Range Viton	-30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec)	0
Accuracy (±mm)	0.080
Accuracy (±in)	0.003
Repeatability (±mm)	0.030
Repeatability (±in)	0.001
Maximum Finger Length (mm)	330
Maximum Finger Length (in)	13.00
Protection Class	IP66
Product Type	2 Jaw Parallel
Direct Connect	Yes
Special Feature	Heavy Duty
Jaw Operation	Non-Synchronous Available
Spring Assist	No
Weight (kg)	1.48
Weight (lb)	3.27
Product Series Description	2-Jaw Parallel Gripper
Number of Jaws	2
Product Function	Gripping
Product Family	Grippers
Product Group	Parallel Grippers
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
