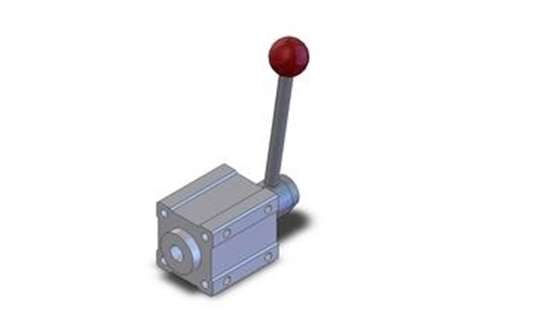

Variable stroke plunger clamp with front flange mount body
- High holding capacity
- High side load capacity
- Plunger guide
- Wiper ring avoids contamination of the clamping mechanism
| Maximum Holding Capacity (N) |
18,000 |
| Maximum Holding Capacity (lbsf) |
4,040 |
| Plunger Travel (mm) |
100, 200, 300 |
| Plunger Travel (in) |
3.94, 7.87, 11.81 |
| Operating Method |
Two-Hand/Plunger-Hand Lever |
| Operating Force (N) |
500 |
| Rapid Stroke (mm) |
100, 200, 300 |
| Max Clamping Stroke (mm) |
4.0 |
| Base Mounting Style |
Block |
| Order Plunger Separately? |
Yes |
| Weight (kg) |
1.50 |
| Weight (lb) |
3.30 |
| Product Series Description |
Variable Stroke Straight Line Action Clamp (Rako) |
