Robohand

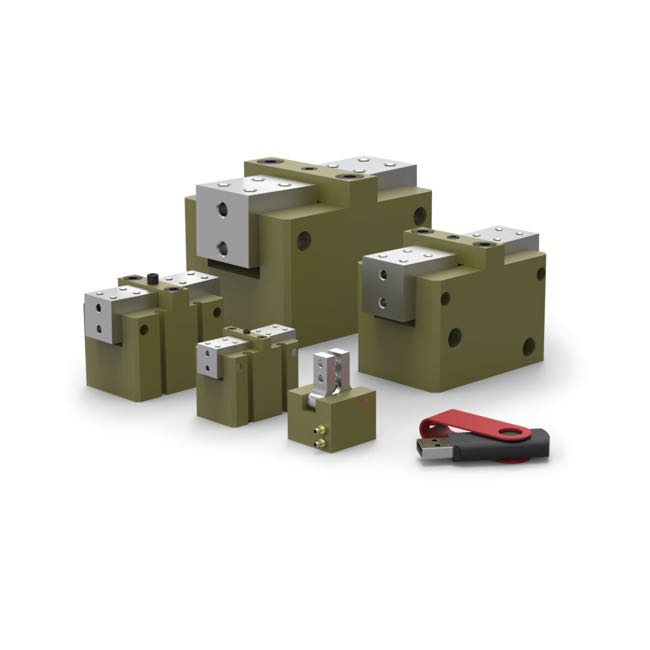

RA-5 2 Jaw Angular Cam Driven Gripper

Name: RA-5 2 Jaw Angular Cam Driven Gripper
Brand: Robohand
SKU: RA-5
Price: 301.00 USD
Availability: InStock

SKU:RA-5

$301.00 USD

Sale Sold out

Shipping calculated at checkout.

DESTACO RA-5 Angular Gripper — Technical Specifications
Specification	RA-5 Value
Total Rated Grip Force @ 7 bar (100 psi)	89 N (20 lbf)
Total Stroke	15° per finger (30° total)
Open Stroke Adjustment	15° per finger (30° total)
Weight	0.11 kg (0.25 lb)
Pressure Range	3–7 bar (40–100 psi)
Ingress Protection (IP)	IP43
Displacement	2.1 cm³ (0.13 in³)
Temperature Range (Buna-N)	-35° to 80°C (-30° to 180°F)
Temperature Range (Viton®)	-30° to 150°C (-20° to 300°F)
Actuation Time	0.10 s
Accuracy	±0.13 mm (±0.005 in)
Repeatability	±0.08 mm (±0.003 in)
Valve to Actuate	4-way, 2-position
