Robohand

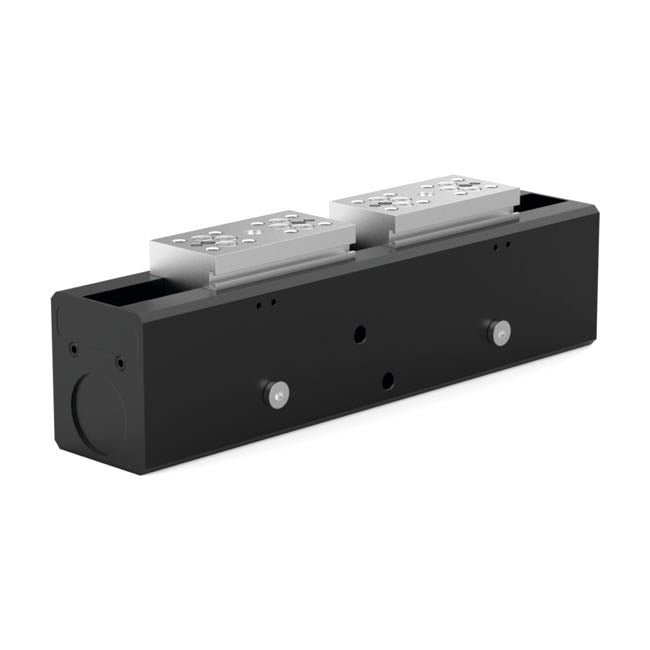

RPB-24M-S 2-Jaw Heavy Duty Parallel Gripper

Name: RPB-24M-S 2-Jaw Heavy Duty Parallel Gripper
Brand: Robohand
SKU: RPB-24M-S
Price: 7702.00 USD
Availability: InStock

SKU:RPB-24M-S

$7,702.00 USD

Sale Sold out

Shipping calculated at checkout.

DESTACO RPB 24M / 24M-S — Technical Specifications
Specification	Value
Total Rated Grip Force @ 7 bar (100 psi)	2669 N (600 lbf)
Total Stroke	101.6 mm (4 in)
Weight	10.9 kg (24 lb)
Pressure Range	1.4–7 bar (20–100 psi)
Cylinder Bore Ø	50.8 mm (2.000 in)
Displacement	204.8 cm³ (12.5 in³)
Temperature Range (Viton® seals)	-30° to 150°C (-20° to 300°F)
Actuation Time	0.5 s
Accuracy	±0.13 mm (±0.005 in)
Repeatability	±0.05 mm (±0.0020 in)
Valve to actuate: Double-acting, 4-way, 2-position.
