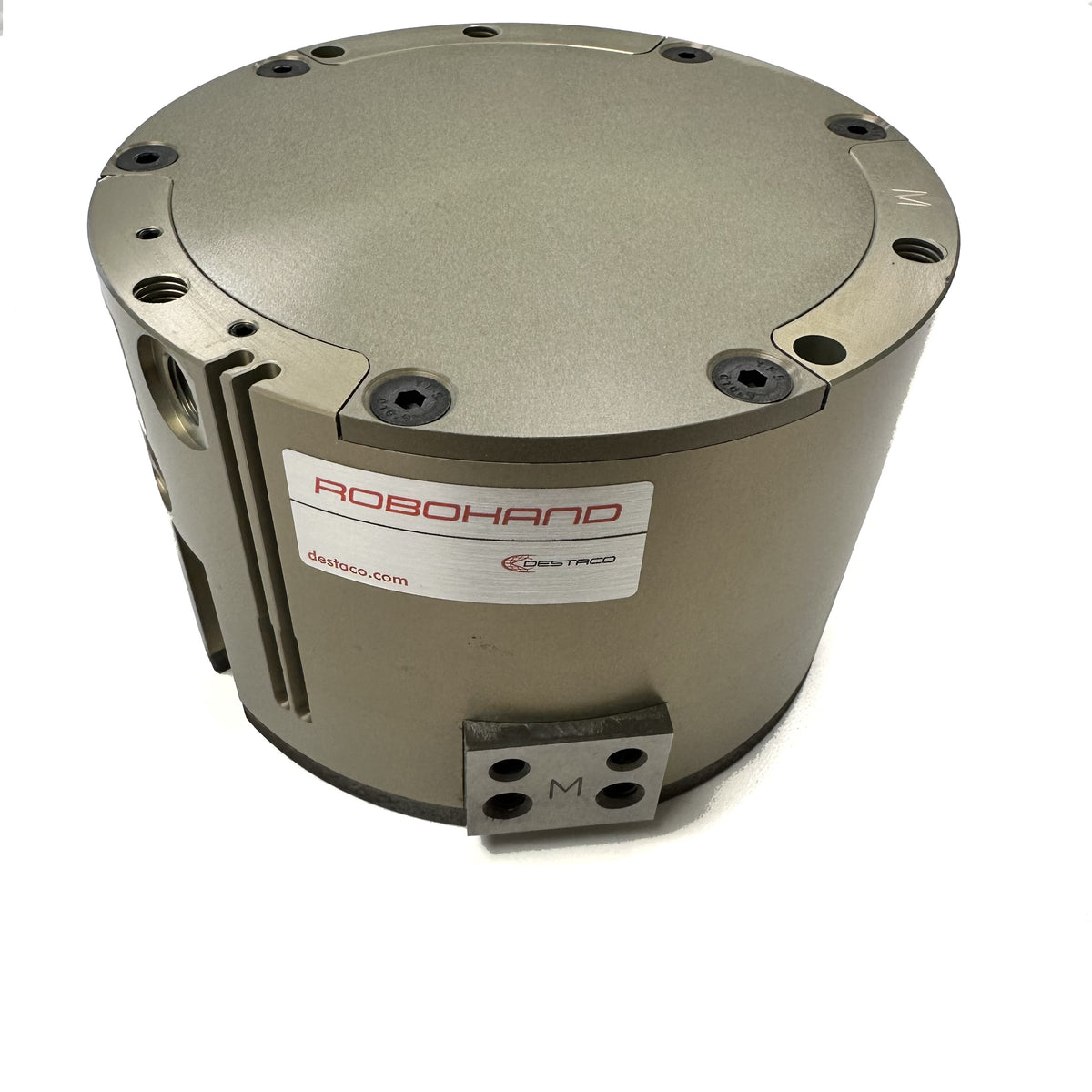

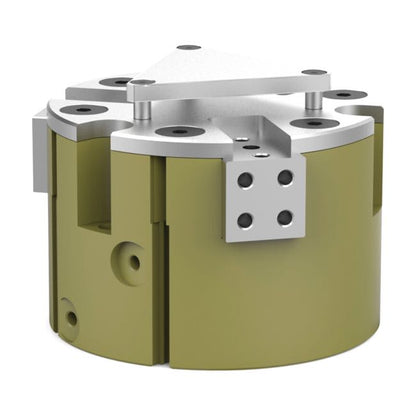

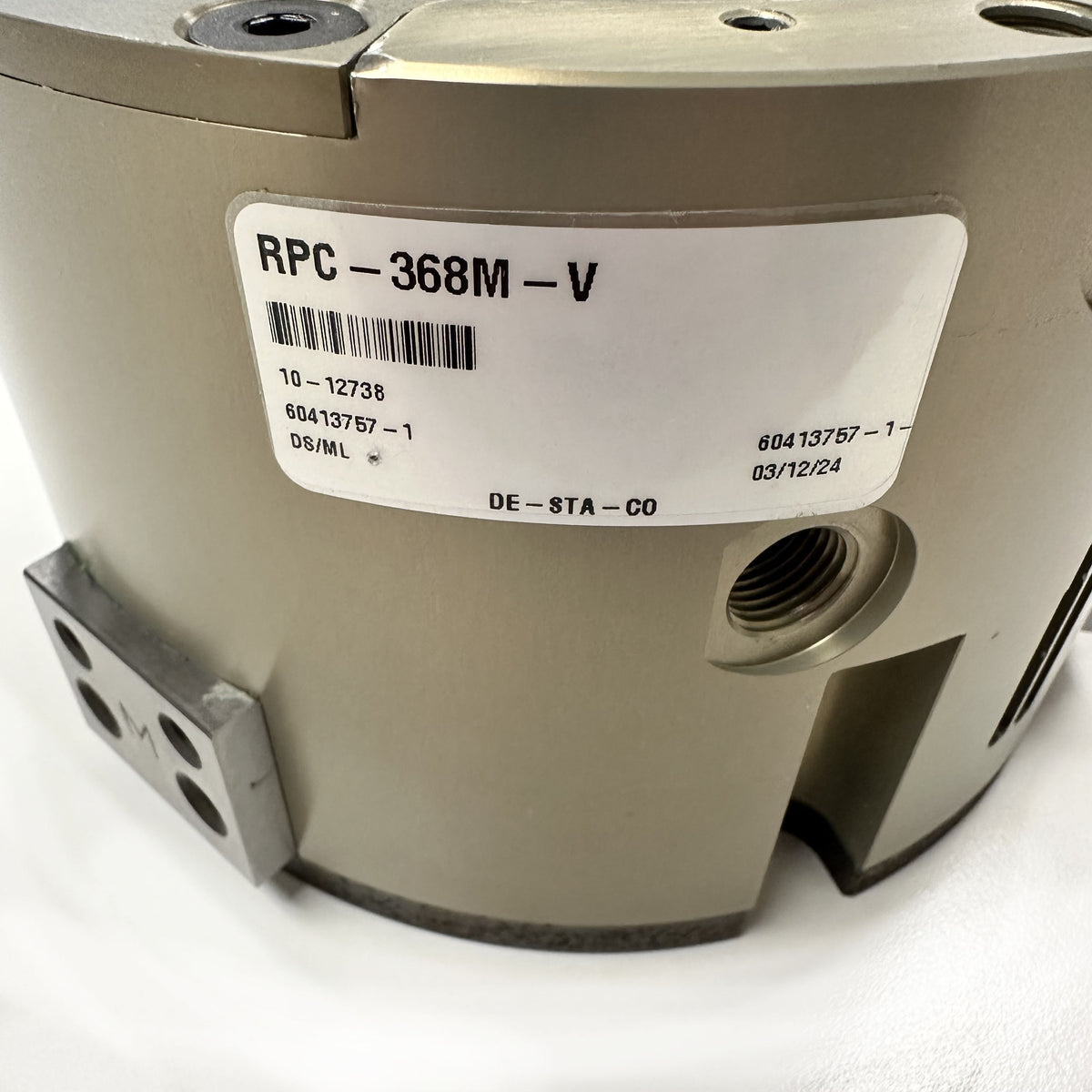

The DESTACO Robohand RPC-368M-V is a high-force, three-jaw pneumatic parallel gripper designed to self-center large or heavy round parts. This metric RPC Series gripper delivers 13,345 N (3,000 lbf) of total rated grip force at 100 psi, with 34.9 mm (1.38 in) of total jaw stroke.
Unlike the standard RPC-368M, the RPC-368M-V is equipped with Viton seals. These seals provide a published operating temperature range of -30°C to 150°C (-20°F to 300°F), making this configuration suitable for applications requiring the temperature capability or material compatibility of Viton.
Limited inventory is currently in stock at Piedmont Technical Sales and ready for immediate shipment. These units are offered at a special inventory price of $4,773, providing an immediate-delivery alternative to a new factory order.
Can the RPC-368M-V Replace the RPC-368M?
The RPC-368M-V can be used in place of the standard RPC-368M when Viton seal material is appropriate for the application. Both models use the same metric RPC-368 gripper platform and share the same mounting dimensions, grip force, jaw stroke, operating-pressure range and load capacities. The “V” suffix identifies the Viton seal configuration; the standard RPC-368M uses Buna-N seals.
Because seal compatibility can depend on temperature, lubricants, chemicals and other environmental conditions, confirm that Viton is appropriate for the application before substituting it for the standard model.
Key Specifications
- Gripper type: Three-jaw self-centering pneumatic parallel gripper
- Total rated grip force: 13,345 N (3,000 lbf) at 100 psi
- Total stroke: 34.9 mm (1.38 in)
- Stroke per jaw: 17.45 mm (0.69 in)
- Operating pressure: 1.4–7 bar (20–100 psi)
- Maximum finger length: 178 mm (7.00 in)
- Repeatability: ±0.03 mm (±0.001 in)
- Accuracy: ±0.05 mm (±0.002 in)
- Ingress protection: IP54
- Weight: Approximately 7.3 kg (16 lb)
- Viton seal temperature range: -30°C to 150°C (-20°F to 300°F)
- Valve requirement: Four-way, two-position valve
Typical Applications
The RPC-368M-V is well suited for lathe loading and unloading, part feeding and ejection, automated workholding, and handling large or heavy round components. Its three synchronized jaws center the workpiece as the gripper closes, while its high grip force supports demanding industrial automation applications.
Contact Piedmont Technical Sales for current inventory confirmation, expedited shipping options, application assistance or help verifying compatibility with an existing RPC-368M installation.
