Robohand

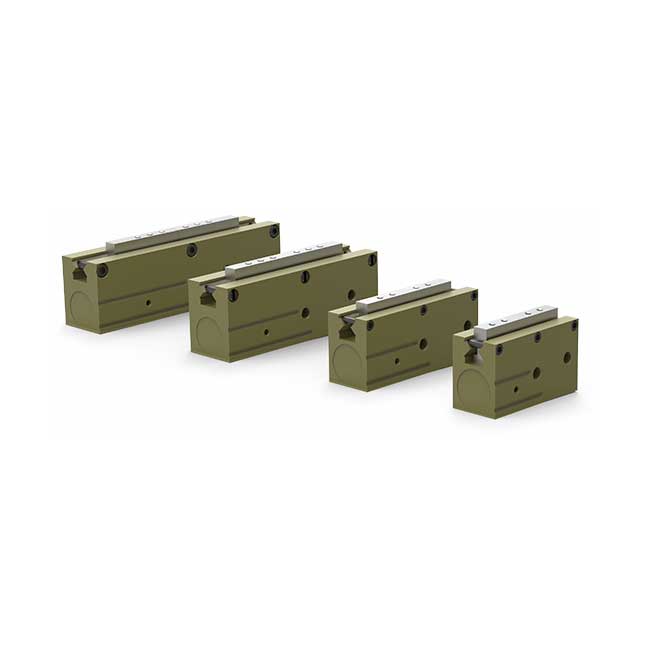

RPL-2M 2 Jaw Low Profile Parallel Gripper

RPL-2M 2 Jaw Low Profile Parallel Gripper

$503.00 USD
$503.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
RPL-2 / RPLC-2 — Technical Specifications
Specification Value
Total Rated Grip Force F @ 100 psi [7 bar] 116 N [26 lb]
Total Stroke 12.7 mm [0.50 in]
Weight 0.09 kg [0.20 lb]
Pressure Range 0.3–7 bar [5–100 psi]
Ingress Protection Class (IP) IP33 (RPL) / IP64 (RPLC)
Displacement 1.2 cm³ [0.075 in³]
Temperature Range (Buna-N seals) −35° to +80° C [−30° to +180° F]
Temperature Range (Viton® seals) −30° to +120° C [−20° to +250° F]
Actuation (open/close) 0.13 s
Accuracy ±0.05 mm [±0.002 in]
Repeatability ±0.03 mm [±0.001 in]
Valve to Actuate 4-way, 2-position
RPL-2 — Loading Information
Load Static Capacity Dynamic Capacity
Maximum Tensile (T) 289 N [65 lb] 89 N [20 lb]
Maximum Compressive (C) 289 N [65 lb] 89 N [20 lb]
Maximum Moment (Mx) 5.1 Nm [45 in-lb] 1.7 Nm [15 in-lb]
Maximum Moment (My) 6.8 Nm [60 in-lb] 2.3 Nm [20 in-lb]
Maximum Moment (Mz) 5.1 Nm [45 in-lb] 1.7 Nm [15 in-lb]
