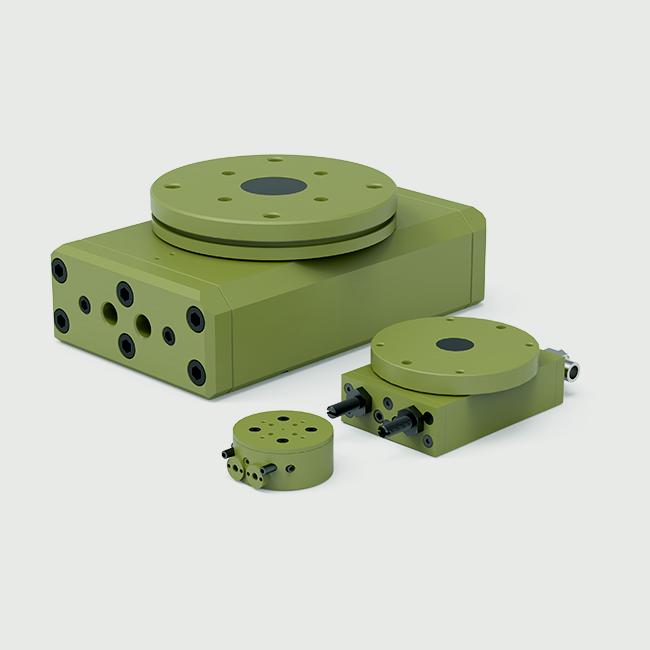

RR-18 Light-Duty Rotary Actuator
Ultra-thin profile for tight spaces, preloaded bearings for repeatable motion, zero backlash via slip-fit dowel pins, and built-in adjustable hard-stops.
Optional rotary manifold prevents twisted airlines; CR option supports clean-room/harsh environments. Common uses: precision rotary positioning, medical/OEM equipment.
Features per datasheet p.3.
RR-18 Specifications
| Specification |
Value |
| Maximum Payload |
0.45 kg [1.0 lb] |
| Maximum Payload Inertia |
0.000181 N·m·s² [0.0016 in-lb·s²] |
| Maximum Rotation |
180° |
| Maximum Torque (mid-stroke @ 100 psi / 7 bar) |
0.7 N·m [6.5 lb-in] |
| Pitch Diameter of Pinion |
8.46 mm [0.333 in] |
| Weight |
0.22 kg [0.48 lb] |
| Pressure Range |
2–7 bar [30–100 psi] |
| Ingress Protection |
IP66 |
| Displacement (180°) |
3.37 cm³ [0.205 in³] |
| Temperature Range (Buna-N) |
−35~80 °C [−30~180 °F] |
| Temperature Range (Viton®) |
−30~150 °C [−20~300 °F] |
| Actuation Time (180° @ 100 psi) |
0.30 s |
| Actuation Time (90° @ 100 psi) |
0.25 s |
| End-stop Repeatability |
±0.02° |
| End-stop Adjustability |
23° |
| Over-travel (each end) |
4° |
| Valve Required |
4-way, 2-position |
