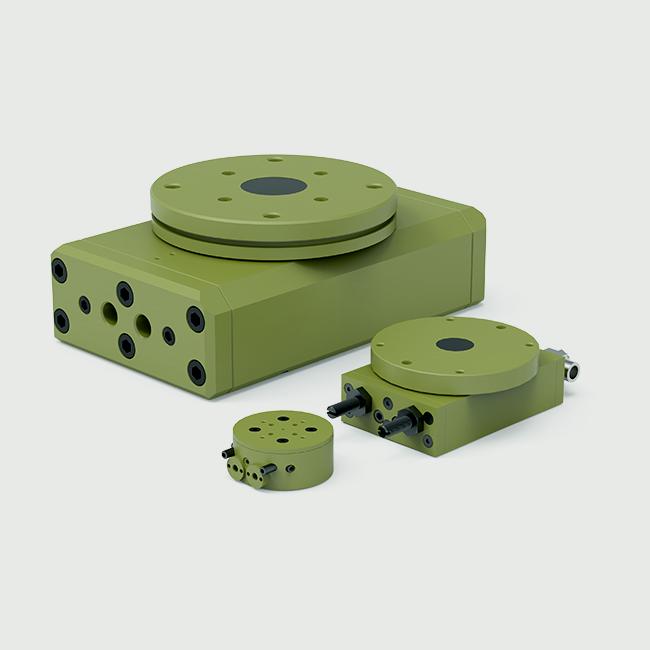

RR-56 Heavy-Duty Rotary Actuator
Heavy-duty rotary actuator designed for compact, high-torque applications and industrial environments. Direct-mount flange supports heavy payloads, preloaded bearings ensure repeatability, dowel-pin location provides zero backlash, and adjustable hard-stops or shock absorbers handle demanding duty cycles. Options include rotary manifold, mid-stop, and shocks.
Features per datasheet p.9.
RR-56 Specifications
| Specification |
Value |
| Maximum Payload† |
13.6 kg [30 lb] |
| Maximum Payload Inertia† |
0.02880 N·m·s² [0.2549 in-lb·s²] |
| Maximum Rotation |
180° |
| Maximum Torque (mid-stroke @ 100 psi / 7 bar) |
35 N·m [311 lb-in] |
| Maximum Torque (end-stroke @ 100 psi / 7 bar) |
17 N·m [155 lb-in] |
| Weight (base unit) |
5.3 kg [11.6 lb] |
| Weight adder — Mid-Position Stop |
0.82 kg [1.8 lb] |
| Weight adder — Rotary Manifold |
0.54 kg [1.2 lb] |
| Pressure Range |
3–7 bar [40–100 psi] |
| Ingress Protection |
IP55 |
| Displacement (180°) |
160.1 cm³ [9.77 in³] |
| Displacement of Mid-Position Stop |
90.16 cm³ [5.502 in³] |
| Temperature Range (Buna-N seals) |
0~66 °C [32~150 °F] |
| Actuation Time (180° @ 100 psi) |
0.48 s |
| Actuation Time (90° @ 100 psi) |
0.40 s |
| End-stop Repeatability |
±0.02° |
| Mid-stop Repeatability |
±0.5° |
| End-stop Adjustability |
30° |
| Over-travel (each end) |
4° |
| Valve required to actuate |
4-way, 2-position |
| Valve required to actuate Mid-Stop |
3-way, 2-position |
Specs from datasheet p.10 (RR-56). :contentReference[oaicite:1]{index=1}
