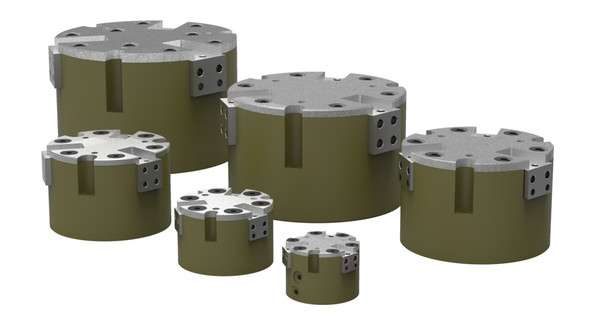

The DESTACO Robohand RPC-368M is a metric, three-jaw pneumatic parallel gripper engineered for self-centering and securely handling large or heavy round components. As the largest model in the high-force RPC Series, it provides 13,345 N (3,000 lbf) of total rated grip force at 100 psi and 34.9 mm (1.38 in) of total jaw stroke.
The RPC-368M uses standard Buna-N seals with a published operating temperature range of -35°C to 80°C (-30°F to 180°F). Its three synchronized jaws help center the workpiece during gripping, making it particularly useful for machine tending, lathe applications, automated part loading and other operations involving round components.
The RPC-368M is factory order only with an estimated 12-week lead time.
Need an RPC-368M Sooner?
The RPC-368M-V Viton-seal version is currently in stock at Piedmont Technical Sales and ready for immediate shipment. It uses the same metric RPC-368 gripper platform and shares the standard model’s mounting dimensions, grip force, stroke, operating-pressure range and load capacities.
The difference is the seal material: the RPC-368M uses Buna-N seals, while the RPC-368M-V uses Viton seals rated for temperatures up to 150°C (300°F). Where Viton is compatible with the application, the RPC-368M-V can be used in place of the standard RPC-368M without changing the gripper’s mechanical fit or published performance.
Key Specifications
- Gripper type: Three-jaw self-centering pneumatic parallel gripper
- Total rated grip force: 13,345 N (3,000 lbf) at 100 psi
- Total stroke: 34.9 mm (1.38 in)
- Stroke per jaw: 17.45 mm (0.69 in)
- Operating pressure: 1.4–7 bar (20–100 psi)
- Maximum finger length: 178 mm (7.00 in)
- Repeatability: ±0.03 mm (±0.001 in)
- Accuracy: ±0.05 mm (±0.002 in)
- Ingress protection: IP54
- Weight: Approximately 7.3 kg (16 lb)
- Buna-N seal temperature range: -35°C to 80°C (-30°F to 180°F)
- Valve requirement: Four-way, two-position valve
Typical Applications
The RPC-368M is designed for high-force gripping of small-to-large round parts. Common uses include lathe loading and unloading, part feeding and ejection, automated workholding, and handling heavy cylindrical components.
Contact Piedmont Technical Sales for current factory lead time, application assistance or help determining whether the immediately available RPC-368M-V is suitable for your installation.
